High Efficiency 1-80tph Cement Mill

  • FOB Price : US $10,000-100,000 / Piece
  • MOQ: 1 PiecePieces
  • Port : Shanghai, China
  • Payment Terms : T/T
  • Production Capacity:  Reference to The Form

Inquiry

Add to My Basket You can manage your basket in member center

  • Basic Info
  • Company Profile
  • Packaging Details: Standard Export Packing
  • Origin:Zhengzhou, China
  • Model Number:YR
  • Brand Name: ZK

Product Description

  • Cement mill is mainly used in grinding of cement finished product and materials, also to the metallurgical, chemical, electricity and other industrial and can be used to open streams, but also to the composition and the separator flow grinding circle. Cement mill has a strong adaptability of materials to production, broken rate large, easy to speed grinding fineness of the product and so on. Ball mill of cement production is capable of dry production and also can be wet. You can simultaneously grinding and drying operation.

    Cement ball mill is a horizontal cylindrical rotating device, outer gear, the two positions, lattice-type ball mill. Material from the feed device into the compound into the air-axis ball screw evenly the first warehouse, the warehouse there are ladder liner or corrugated liner, built of different size balls, rotating cylinder produces centrifugal force to the ball after a certain height fall, have severe impact on the material and abrasive. The first position in the cement material to coarse grinding mill, after single-compartment plate into the second ball mill warehouse, the warehouse lined with flat lining, steel ball inside, the material further grinding. Powder discharged through the discharge grate plate to complete the grinding operation. Multiple positions can be selected, according to the different choice of different lining materials, in short, can be customized according to customer requirements and so on.

    Cement mill specification:





    electromotorreducer
    SpecificationOutput (t/h)RevGrinding


    R/minBody(t)




    modelpower(kw)modelRatio of  speed
    1.2x4.51.430.32YR250M-655ZD30-84.481
    1.5x5.73.526.3411JR127-8130ZD40-74
    1.83x6.4623.918JR137-8210ZD60-84.5
    1.83x76.524.520JR138-8245ZD60-84.5
    2x99.5-1023.8831JR158-8380ZD70-84.5
    2.2x6.58921.430JRQ158-8/YR630-8380ZD70-85
    2.2x6.51421.430JRQ158-8/YR630-8380ZD70-95
    2.2x71221.430JR158-8380ZD70-95
    2.2x7.51321.432JR158-8380ZD70-95
    2.2x8111221.437JR158-8380ZD70-95
    2.2x9.514-1621.443JR1510-8475ZD70-95
    2.2x131620.355YR630-8/1180/Y100L-8630/11JD630/ZS82.5-76.3/99.96
    2.4x714-16 Closed-circuit20.436JR1510-8475JDx4505
    2.4x816-17 Closed-circuit20.341JR1512-8/Y180L-8570/11JD630/ZS82.5-76.333/99.96
    2.4x917-1 Closed-circuit20.346YR630-8/1180/Y100L-8630/11JD630/ZS82.5-76.333/99.96
    2.4x1018-19 Open circuit 20-22 Closed-circuit20.350YR630-8/1180/Y100L-8630/11JD630/ZS82.5-76.333/99.96
    2.4x1119-21 Open circuit20.360YR630-8/1180/Y100L-8630/11JD630/ZS82.5-76.333/99.96
    2.4x1225-27Open circuit20.361YR800-8/1180/Y100L-8800/11JD630/ZS82.5-76.333/99.96
    2.4x1325-27 Open circuit20.366YR800-8/1180/Y100L-8800/11JD630/ZS82.5-76.333/99.96
    2.4x1321-23 Open circuit20.366YR1000-8/1180/Y160M-41000/11JD630/ZS82.5-76.333/99.96
    2.6x1025-27 Closed-circuit20.360YR800-8/1250800JD8005.5
    2.6x1327-2919.1
    YR1000-8/1180/Y160M-41000/11
    5.5/280
    3x933-34Open circuit19.679YR1000-8/1180/Y160M-41000/11NAL108/8/ZS110-198/280
    3x936.5 Open circuit17.6
    YR118/61-81000
    42.163
    3x1135-40 Open circuit18.397YR1250-8/1430/YR160M-41250/11YNL12106.3
    3x1147Open circuit17.7
    YR118/74-81250
    42.39
    3x1238-40 Closed-circuit18.1
    YR1250-8/14301250/11
    41.27
    3.2x1140 Closed-circuit18103YR1400-8/1430/Y160M-41400/11YNL1210/ZS110-1912.35/28
    3.5x11.565-70Open circuit16.5
    TYD143/49-82-1000
    36.239
    3.5x11.550 Closed-circuit17.2126YR1800-8/1430/Y200L2-21800/37JSX1300A/JMX56043.02/318
    3.8x13Double70-75 Closed-circuit16.6
    YRKK800-82500
    44.9
    sliding shoe
    3.8x1360-6216.3170YR2500-10/17302500MFYX250
    4x1365 Closed-circuit15.95202YRKK900-82800JS130-846.7
    4.2x1385 Closed-circuit16.3224YRKK900-83150MFY32047.8
    4.2x1385-8716.3224YR1000-83530JQS355015.6



    Cement mill Technical Advantages:

    1. Low invest cost
    2. Low run cost
    3. High drying ability
    4. Easy to operate, reliable performance
    5. Stable quality
    6. Convenient to maintain
    7. Environmental protection

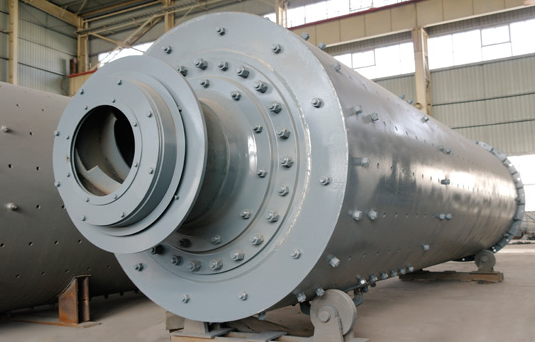

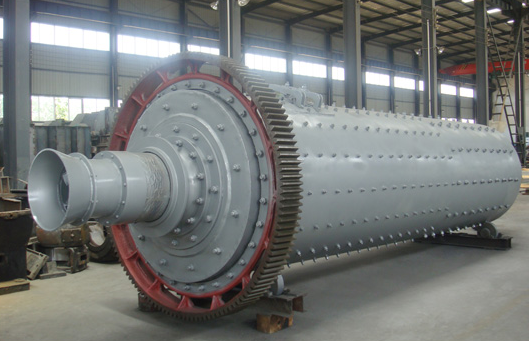

Photo Show

  • Henan Zhengzhou Mining Machinery Co., Ltd, was established in 1956 and located in Xingyang of Zhengzhou City of Henan Province, specially produces metallurgical machinery. It covers an area of more than 55000m2 and various building area of 28000 m2. It has the annual income of more than RMB180million in 2008 and now the fixed assets of over RMB80 million. In the plant, there are branches and workshops of cast iron, cast steel, forging, heavy machine tool processing, rivet welding and heat treatment etc. Its perfect and complete equipment, advanced detection means, strong technical force establish good foundation for the reliable production.

    Main products include: Jaw style, hammer style, impact style and roll style crusher; Ball mill, direct fired drier, rotary kiln, preheater, coker, magnetic separator, flotation machine, classifier, feeder, hoisting machine and conveyor etc. These complete sets of machinery for cement building material, metallurgy, coking and chemical smelting etc are sold well in the world. Our company also has professional installation and construction teams and perfect after-sales service guaranty system.

    With the development of the People's Republic of China, Henan Zhengzhou Mining Machinery Co., Ltd undergoes frequent difficulties and has accomplished over 50 years' brilliant history. Initially from the manufacturing of original single machine till today's series of and complete sets of mining metallurgical machinery, it has made great contribution to the development and utilization of mineral resources of our country. For many years, each spot check and annual examination carried by National Mining Machinery Quality Supervision and Inspection Center for our products is acceptable and our company is always appointed as Credible and Reputed Enterprise by Henan Provincial Administration of Industry and Commerce.

    Henan Zhengzhou Mining Machinery Co., Ltd will continue providing excellent products and service for our society, with the guideline of "survival by quality, development by good faith, users supreme". Our company would make sincere cooperation with all circles for mutual benefit and common development.
