Model NO.: LT-60DA
Cooling Method: Air-cooled
Selected Voltage: 380V/50HZ
Noise Level: Low
Application Machine: CNC Machine Tools
Condition: New
Max Running Current: 432A
Refrigeration: R22 144kg
Evaporator: Shell and Tube
Fan: Low Noise Outer Fan

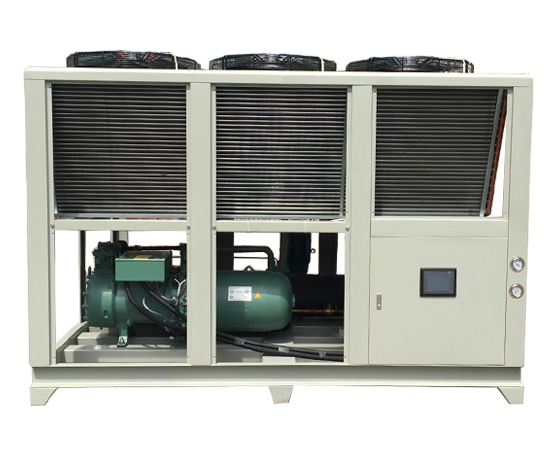

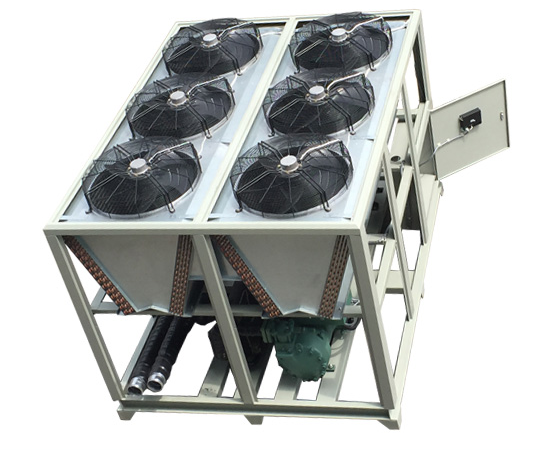

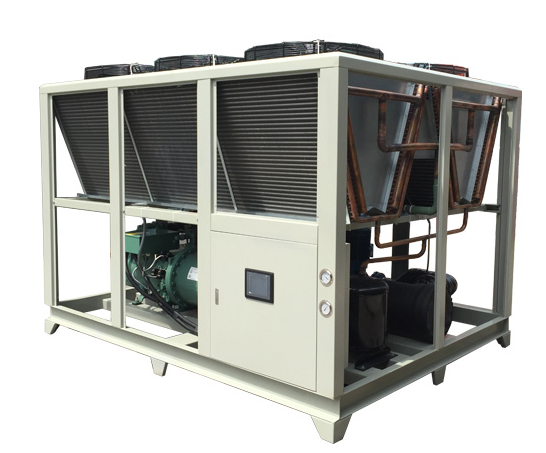

Item: Air Cooled Screw Chiller
Specification: high quality
HS Code: 8418692090Type: Air-Cooled
Unit Structure: Integral
Compressor Number: 1
Application Fields: Plastic
Certification: CE, SGS
Cooling Capacity: 498800kcal/H
Power: 3pH-380V-50Hz(200V/220V/415V-50Hz/60Hz)
Compressor: Screw Semi-Hermetic
Condenser: Efficient Air Cooling Type Internal Thread Copper
Weight: 5120kg
Trademark: LingTong
Origin: Shenzhen, Guangdong
High efficient air cooled screw chiller; competitive price; Factory; short delivery time; Hanbell compressor product Description:
Air-hermetic industrial chiller using advanced production technology, superior quality, compact structure, beautiful appearance. The Products can be widely used in plastics, electroplating, electronics manufacturing, pharmaceutical chemicals, food processing, refrigeration and other industrial establishments and guesthouses, hotels, shopping malls, office buildings and other types of civil air-conditioning system.
Unit Features:
1. Using imported international brands BITZER Germany (Bitzer), HANBELL China Taiwan energy efficient compressor matches the quality of the condenser and evaporator, high efficiency, stable performance, Low noise, long service life Industrial PLC central control unit, the energy transfer system with the compressor can be timely efficiency in order to run the unit, lower operating costs;
2. Within the integrated water, low temperature, high pressure, freezing, phase, delay start, reverse, overload, motor overheating, oil pressure, and poor treatment a number of security features;
3. English user interface, menu prompts, can be set unit operating environment;
4. Volume control can be four sections (100%-75%-50%-25%) or three-step (100%-66%-33%) and non-stage control systems;
5. A unique built-in hydraulic system, no pumps are guaranteed to maintain the best lubricating effect of the compressor, oil separator with double filtration, oil filtering effect of good, can play a maximum capacity of heat exchangers;
6. Efficient thread copper tube to enhance heat transfer effects, more energy efficient. Using the latest CAD/CAM design and processing technology CNC machining center produced, compact structure, small volume, durable. U-beam structure of the tubes can be cleaned out within the overall scale, easy maintenance, to prevent refrigerant leakage phenomenon;
7. Use all imports of the corrugates steel pipe and hyperbolic hydrophilic aluminum foil, high-speed drilling, and other professional equipment manufacturers, is more closely exposed pipe and fin, heat transfer more efficient, with a small size, light weight, the advantages of more compact and reasonable;
8. No need to install cooling towers, cooling water pumps and other equipment for water scarcity and poor water quality areas. It can be installed on the roof, rooftops and other open spaces, no special room is needed, saving space;
1). Customized accept:
LingTong company have one special engineer team for design, they can make the special solution according to your working need, such as customize cooling capacity, special material for ship use, seawater, corrosive, food industry, juice and wine process and etc. Just tell us:
A. What's your water composition? Or industry
B. What's your temperature range?
C. What's your chilled water flow need?
D. What's the working ambient?
E. What voltage do you need?
1. Differing Refrigerants: R22, R407, R134a can be supplied on request
2. Special voltages: 115V 220V~240V 50 Hz or 60 Hz (Single and Three Phase) are available
Then we can choose the right chiller for you.
