Model NO.: WQ128Y
Transport Package: Foam Pallet Plywood Pallet Wooden Pallet
Origin: China (Mainland)
Trademark: Wansheng
Specification: CCC/CE/VDE
HS Code: 8414301190
1. Strong load capacity
2. High efficiency & reliability
3. Reliable starting performance
4. Low sound & vibration
Applied to Medium-Large size refrigerator, freezer, cabinet, liquor cabinet, vending machine, ice-making machine, etc.

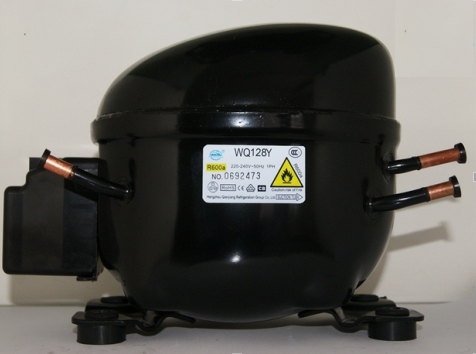

WQ Series WQ128Y LBP Has passed CCC/CE/VDE certification
The company obtains continuous development and becomes one of the leading compressor manufactures in China. Up to now,10 series of compressors(V series,WV series,WS series,SC series,VFC series,etc.)are produced in our company and more than 80 models are available with the power range from 1/12 to 5 horse power, including the refrigerant R600a,R134a,R22 and R406a
Transport Package: Foam Pallet Plywood Pallet Wooden Pallet
Origin: China (Mainland)
Trademark: Wansheng
Specification: CCC/CE/VDE
HS Code: 8414301190
1. Strong load capacity
2. High efficiency & reliability
3. Reliable starting performance
4. Low sound & vibration
Applied to Medium-Large size refrigerator, freezer, cabinet, liquor cabinet, vending machine, ice-making machine, etc.
WQ Series WQ128Y LBP Has passed CCC/CE/VDE certification
The company obtains continuous development and becomes one of the leading compressor manufactures in China. Up to now,10 series of compressors(V series,WV series,WS series,SC series,VFC series,etc.)are produced in our company and more than 80 models are available with the power range from 1/12 to 5 horse power, including the refrigerant R600a,R134a,R22 and R406a
R600a WANSHENG Low Back Pressure (LBP) Compressor R600a WANSHENG Low Back Pressure (LBP) Compressor Test Conditions Evap. Temp.: -23.3°C Cond. Temp.: 54.4°C Amb. Temp.: 32.2°C Suction. Temp.: 32.2°C Subcooling Temp.: 32.2°C LBP ASHRAE Model Displacement
(cm³)Cooling Capacity (W) Rated Power (W) Nominal power (HP) COP (W/W) Motor Type Starting Capacitor
(μF)Running Capacitor
(μF)Starting Relay Cooling Type WQ series 220-240V~50Hz WQ128Y 12.8 220 152 1/5 1.45 RSIR / / PTC F
