Y2 Series Three Phase AC Motor

Price : US $10-30 / Box
MOQ: 1 Box/4
Post Time: 2017-06-22 01:32:35

Inquiry

Add to My Basket You can manage your basket in member center

Basic Info
Company Profile

Payment Terms:T/T

Trade Leads Description

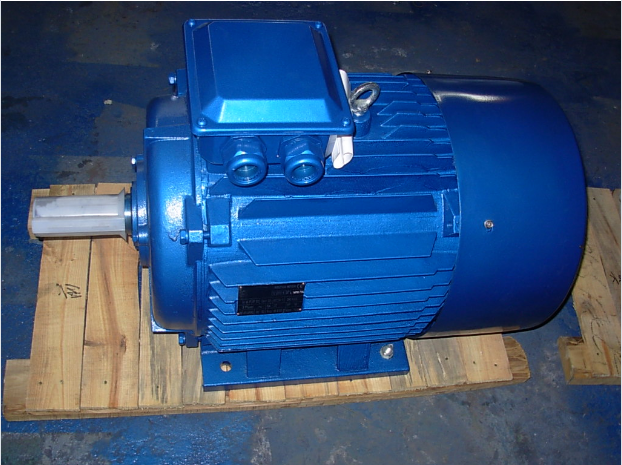

Y2 electric / induction motor

1 high efficiency
2 easy maintenance
3 IEC CCC CQC
4 factory price

Y2 electric / induction motor

Y2 series three phase AC motor
1)Three phase induction motor
2)Superior life, 100% copper wire
3)CE, ISO9001, OEM approve

Y2 series three phase AC motor

Y2 Series three-phasen induction motor, adopting the national unified design, has reached the international advanced level of 90's. It can replace Y series induction motor anad possess sophisticated features such as new construction, good-looking appearance, low noise, low vibration, economization on power and materials consumption, etc.
Benefits
1) Water dust and vermin resistant
2) Quiet operation
3) Corrosion resistant
4) Reliable in countyr, city or factory environment
5) Very low vibration
6) Very low power consumption
Features:
1) IP 55 enclosure, IP54 availiable on request
2) Class F insulation, Clsaa H available on request
3) 230/400, 400/690 Volt 50/60 Hz
4) High quality magnet wire
5) Vacuum vanish impregnation for superior
6) Tropic proof insulation
7) Continous S1operation
8) Industrial type service factors
9) Heavy duty ball bearings
10) High strength iron cast frame
11) Balanced rotors

Introduction:

Y2 series three phase induction motor, adopting the national unified design, has reached the international advanced level of 90's. It can replace Y series induction motor and possess sophisticated features such as new construction, good -looking apperance, low vibration, low noise, econimization on power and materials consumption, etc.

---top mounted terminal box;

--AL or cast iron shell

Notes: The Y connection for motor of 3kw and below, and delta connection for 4kw and above.

Technical data
Type	Output		Current (A)	Power factor	Eff (%)	Speed (r/min)	Tstart/tn	Ist/in	Tmax/tn
Type	KW	HP	Current (A)	Power factor	Eff (%)	Speed (r/min)	Tstart/tn	Ist/in	Tmax/tn
Y2-160M-4	11	15	22.3	0.84	88	1450	2.2	7	2.3
Y2-160L-4	15	20	30.1	0.85	88	1450	2.2	7.5	2.3
Y2-180M-4	18.5	25	36.5	0.86	90.5	1460	2.2	7.5	2.3
Y2-180L-4	22	30	43.1	0.86	91	1460	2.2	7.5	2.3
Y2-200L-4	30	40	57.6	0.86	92	1460	2.2	7.2	2.3
Y2-225S-4	37	50	69.9	0.87	92.5	1470	2.2	7.2	2.3
Y2-225M-4	45	60	84.7	0.87	92.8	1470	2.2	7.2	2.3
Y2-250M-4	55	75	103	0.87	93	1480	2.2	7.2	2.3
Y2-160M-6	7.5	10	17	0.77	86	970	2	6.5	2.1
Y2-160L-6	11	15	24.2	0.78	87.5	970	2	6.5	2.1
Y2-180L-6	15	20	31.6	0.81	89	970	2	7	2.1
Y2-200L1-6	18.5	25	38.6	0.81	90	970	2.1	7	2.1
Y2-200L2-6	22	30	44.7	0.83	90	970	2.1	7	2.1
Y2-225M-6	30	40	59.3	0.84	91.5	980	2	7	2.1
Y2-250M-6	37	50	71	0.86	92	980	2.1	7	2.1

Photo Show

Fujian Tianyi Motor Co., Ltd. Was established in 2004, locate in Fu'an, China, a famous electrical machinery and equipment industrial base city in Mindong China. We service both domestic and foreign customers with 10 million RMB fixed assets, and nearly 100 million RMB annual turnover, now has become a medium-siz...More >
Fujian Tianyi Motor Co., Ltd. Was established in 2004, locate in Fu'an, China, a famous electrical machinery and equipment industrial base city in Mindong China. We service both domestic and foreign customers with 10 million RMB fixed assets, and nearly 100 million RMB annual turnover, now has become a medium-sized backbone enterprise in the electric industry of Fuan City.

Fujian Tianyi Motor Co., Ltd. is dedicated in the scientific research, production and sales of "TianYi" brand Generators, Generator sets, Electric Motors, Water pumps and relaltived spare parts. The company has strong technical force, advanced production and testing equipment. Since its foundation, Tianyi always adher to enterprise spirit of "The Market Is the Core" and "The Quality is the life" and Strictly enforce ISO9001-2008 quality management system and CCC certificate requirementsClose >
